Makeblock Kits and Accessories



Makeblock is a fast growing robot constuction platform based on aluminum extrusion materials.We provide an integrated platform including many mechanical parts and electronic modules, all the mechanical parts are convenient to connect to each other. the electronic modules are easy to use, also it's conveinent to attach on the mechanical parts.

We will concentrate on developping new parts and modules, to make this platform cover more and more functions. We are willing to cooperate with distributors around the world, to bring you customer this innovative construction platform, to help turn their ideas into success.

We do carry ALL Makeblock parts, but we only list some of popular ones.

Please contact us if you cannot find them here. We guarantee our price is the lowest among the distributors.

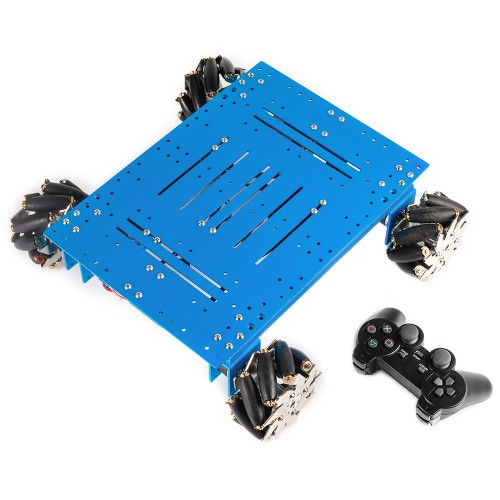

MAKEBLOCK - Mecanum Wheel Robot Kit with Orion and Handle -- US$719.00

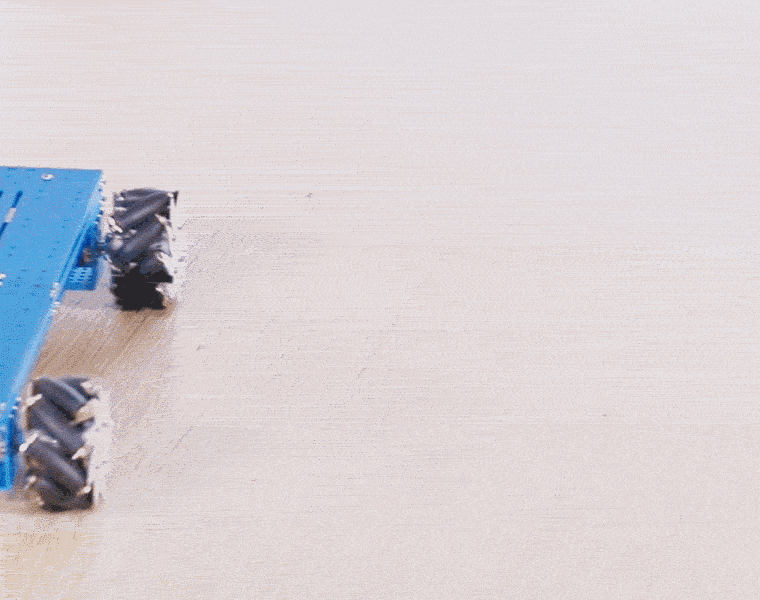

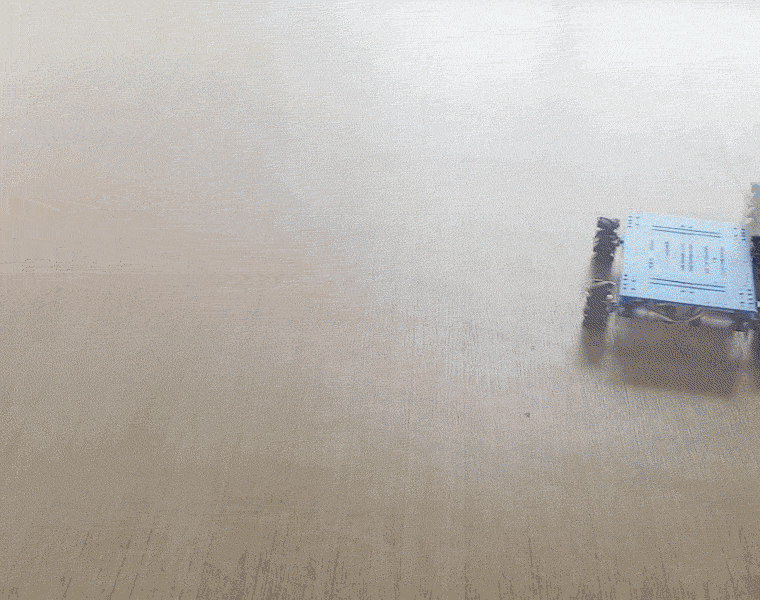

Mecanum Wheel Robot Kit is a type of mobile chassis robot based on Makeblock open source hardware. The chassis of this kit consists of mecanum wheel, encoder motor driver, mechanical structure and other electronic modules (e.g. main controller). This robot kit is for projects that move in narrow space or projects that need to move in all directions.

Sizes

This mecanum wheel chassis is a two-in-one base which allows you to build into two different sizes.

Type

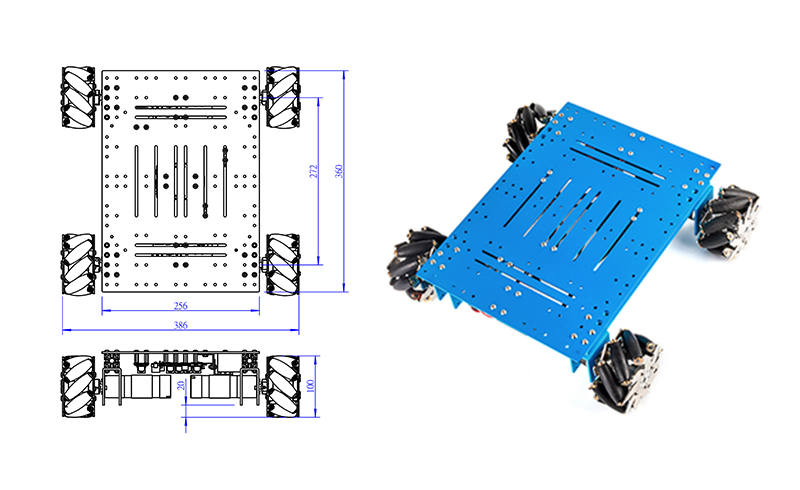

Size I

Size (mm)

360 x 386 x 100

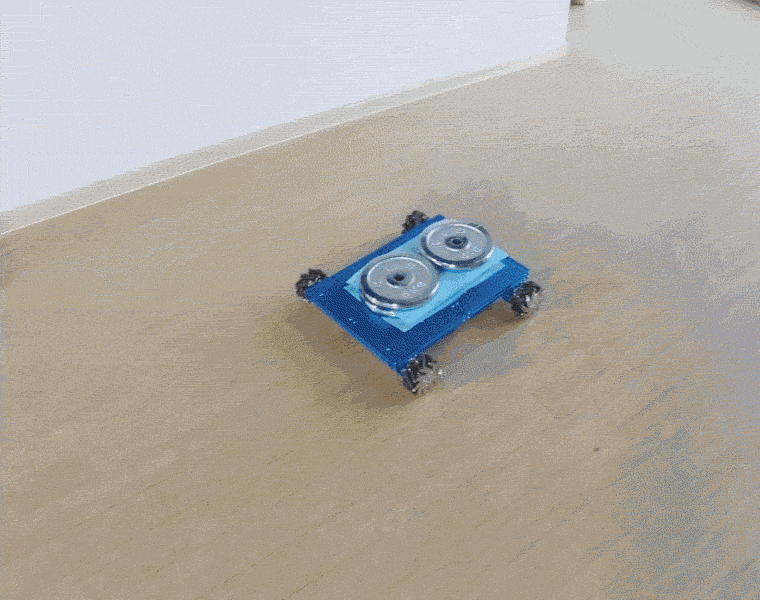

Rated Load (kg)

10

Speed (m/s)

1

Type

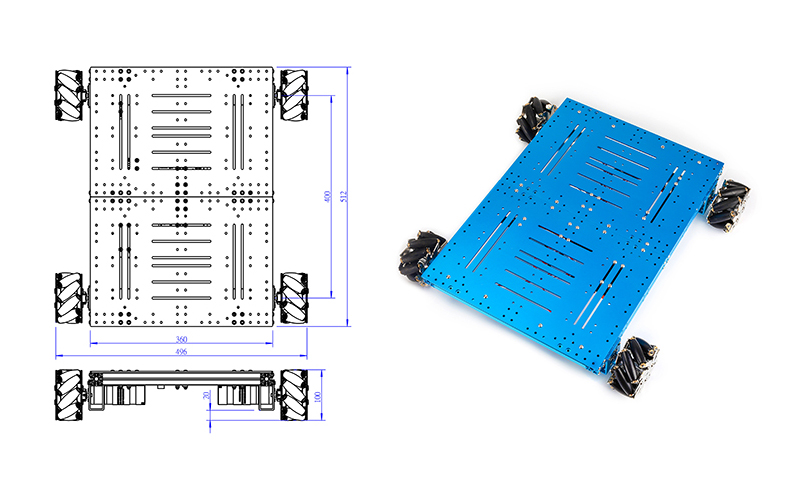

Size II

Size (mm)

496 x 512 x 100

Rated Load (kg)

40

Speed (m/s)

1



Specifications
1. Frame: Anodized Aluminum
2. Power Supply: DC 12V
3. Main Controller: Makeblock Orion (Arduino UNO compatible)
4. Software: Arduino
5. Connection: 2.4G Wireless Serial
6. Color: Blue
7. Speed: 1 m/s
8. 12V 36mm Encode DC Motor:
No Load Current (A) ≤0.650
No Load Speed (rpm) ≤223±10%
Rated Load Torque (kgf.cm) ≤7
Rated Current (A) ≤2.500
Rated Load Speed (rpm) ≤178±10%
9. Package Contains:

• Aluminum Extrusion Parts

• 100mm Mecanum Wheel

• Makeblock Orion (Controller)

• 12V 36mm Encode DC Motor

• Me High-Power Encoder Motor Driver

• Other Hardware and Accessories






WARNING:

Collision Risk of Mecanum Wheel and Disclaimer

Due to the characteristic of the mecanum structure, this mecanum robot kit has anti-impact resistance feature. This robot kit can only run on flat floor and cannot collide with the walls or other obstacles, or it may cause damage of the sticks or bearings in the mecanum wheels. For improper use of this product, for instance, damage caused by running this robot on uneven floor or collision with other obstacles, we will not provide warranty and refunds.




Mecanum descriptions from MAKEBLOCK.
