RS-MIROSOT-100 Advanced Soccer Robot ... US$1,895.00
MIROSOT-100 is a powerful soccer robot. All components are compliant with Federation of International Robot-soccer Association (FIRA) rules. MIROSOT-100 has two precision-geared DC motors. Each motor has its own 512-pulse/rev encoder , allowing for precise motion control. The soccer robot also incorporates an EPLD chip, which has encoder input processing logic and PWM hardware logic. The soccer robot uses an Am188ES CPU employing INTEL 8086 architecture. It is also ruggedly constructed with a duralumin frame allowing it to easily withstand the incidental bumping and pushing which occurs during a game. Technical Specifications and Product Details.

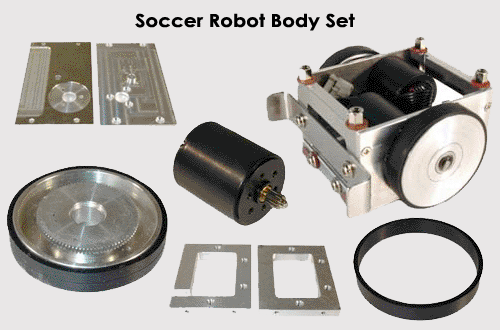

RS-SOCCER-BODY (with motors)... US$995.00
Soccer Robot Body Set provides the mechanical parts for a mobile robot type of microrobot.
FEATURES
- Two 2224R006SR (Minimotor, includes Encoder IE2-512 ) DC motors.
- Motor: 4.2W, 8,200 rpm(No-Load),
- Stall touque 21.20 mNm
- Encoder : IE2-512 , 512 Lines per revolution, 2 Ch Digital output
- Reduction Ratio : 7.5:1 (Wheel Gear Teeth(90) vs. Pinion Teeth(12))
- Two Geared Wheels with rubber tires.
- Aluminum Robot Body(duralumin).
- Four flange bearings.
- Front Dribbler.
RS-SOCCER-BODY (without motors) ... US$695.95
The soccer robot body comes with: Body Frame x 1, Geared wheel x 2, Ball Guide x 1, Shaft x 1, Flange Bearing x 4, E-ring x 4, Slide x 2. The motors are not included. All items are the same as RS-SOCCER-BODY except two DC motors are not included.

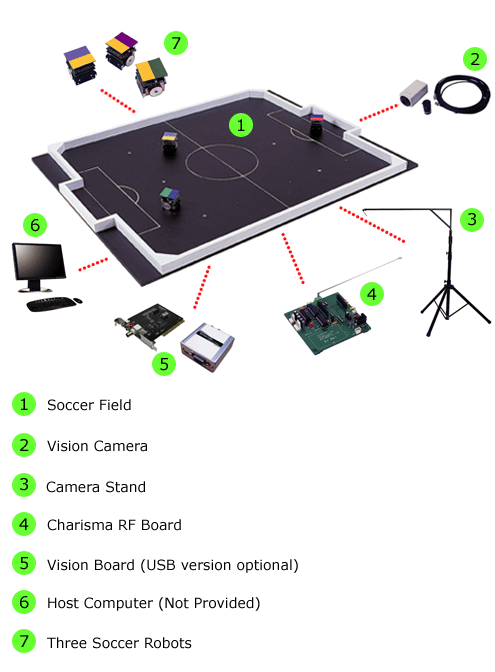

RS-SOCCER-SYSTEM ... US$19,388.00
Complete socer robot system include a team of 3 robots, socer field, advanced vision system, RF control boards, and more... Technical Specifications and Product Details.

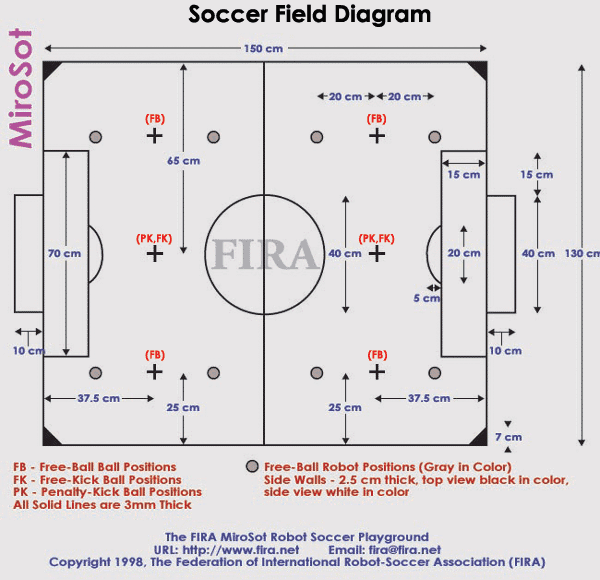

RS-FIRA-SOCCER-PLAYINGFIELD... US$2,399.95
Soccer field used for the soccer robot system. Is compliant with Federation of International Robot-soccer Association (FIRA) rules. The weight is about 198kg.

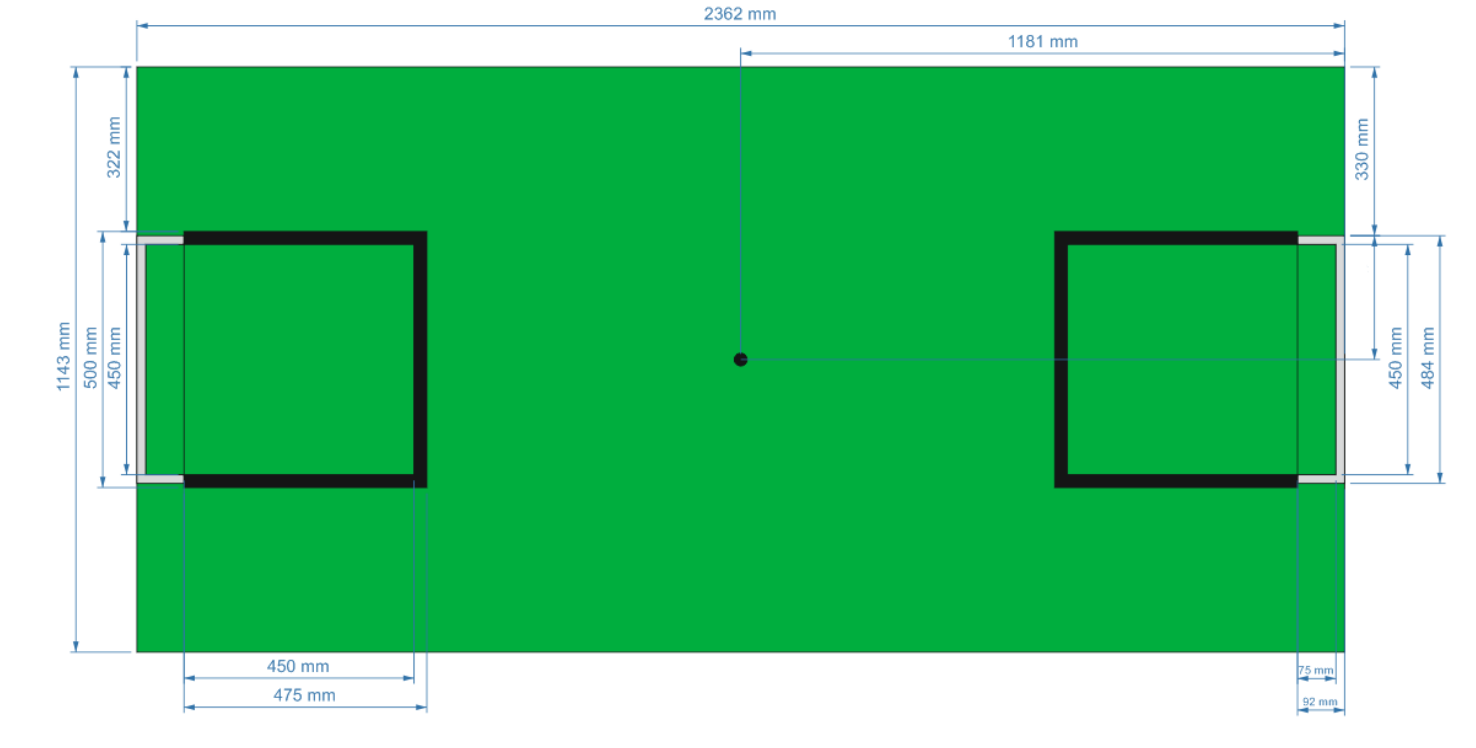

RS-WRO-Soccer Field Type 1 ... US$109.00
Soccer field has a size of 1143mm x 2362mm for World Robotic Olympiad (WRO). It has been printed on a water-resistant, durable Vinyl with roll resistant mat. It does not come with any fence or goal.

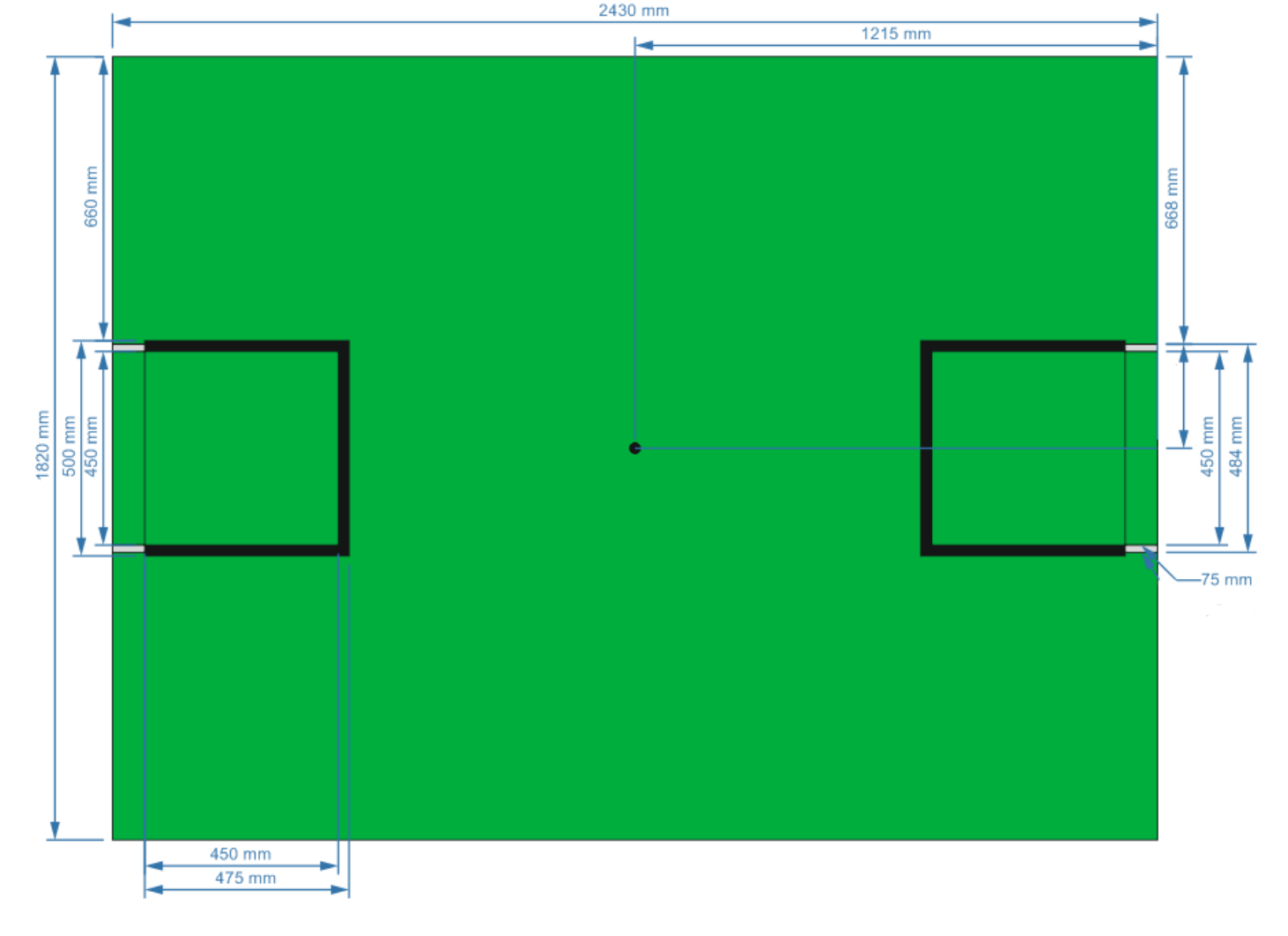

RS-WRO-Soccer Field Type 2 ... US$189.00
Soccer field has a size of 1820mm x 2430mm for World Robotic Olympiad (WRO). It has been printed on a water-resistant, durable Vinyl with roll resistant mat. It does not come with any fence or goal.

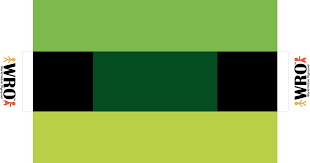

RS-WRO-Soccer Field Type 3 ... US$109.00
Soccer field has a size of 1220mm x 1830mm for World Robotic Olympiad (WRO) or GEN II. It has been printed on a water-resistant, durable Vinyl with roll resistant mat. It does not come with any fence or goal.
RS-VISION-SYSTEM ... US$159.95
The MyVision Board is a PCI (Peripheral Component Interconnect) vision board, which stores vision data, received from an external camera in a user buffer. It accepts a NTSC (National Television Standards Committee) signal and a SVideo (Super Video) signal. It has a BNC, a RCA and a SVideo connector for user convenience. It can process four vision data inputs at the same time. The user can install as many MyVision Boards in his PC as there are vacant PCI slots. 640 x 480 32bit-color resolution is available. The Vision image can be stored to memory in either frame or field format. The MyVision board sends vision data to PC memory directly by DMA (Direct Memory Access) resulting in less time delay. A MV library comes with this board. The user can make his own program easily and quickly with the library. In the library, there are some special functions for creating a Soccer Robot. Technical Specifications and Product Details.
RS-RF-SYSTEM-BOARD(without RF module) ... US$26.95
RS-RF-SYSTEM-BiM418 (with BiM418 RF module)... US$149.95
RS-RF-SYSTEM-BiM433 (with BiM433 RF module) ... US$149.95
RS-RF-SYSTEM-TX (with TX module) ...US$119.95
RS-RF-SYSTEM-RX (with TX module) ...US$119.95
RS-RF-BiM418 (BiM418 RF module only) ... US$126.00
RS-RF-BiM433 (BiM433 RF module only) ... US$126.00
RS-RF-TX (TX module only) ... US$96.95
RS-RF-RX (RX module only) ... US$96.95
The RF (Radio Frequency) module is an electronic module used for wireless communication. It has simple inputs and outputs, allowing for beginners to use it relatively easily. Technical Specifications and Product Details.
RS-BATTERY-Charger ---US$39.00
Battery charger kit for the RS-BATTERY-NiMH-450, RS-BATTREY-NiMH-600, and RS-BATTERY-NiCd batteries.
RS-BATTERY-NiMH-450 ---US$49.95
RS-BATTERY--NiMH-600 ---US$56.95
These batteries can be used for a micromouse set (AIRAT2). A micromouse runs over 30 minutes with the batteries, which is enough power for most micromouse competetions.
| Specifications |
|
Size:
Power:
|
35 x 35 x 16 mm
7.2 V (1.2 x 6), 450mAh
7.2 V (1.2 x 6), 600mAh
|
|
|
| Features |
|
- Designed for a small robot.
- Compact and high power density.
|
RS-BATTERY-NiCd ---US$29.95
| Specifications |
|
Size:
Power: |
48.5 x 50.5 x 12.7 mm
7.2 V (1.2 x 6), 300mAh
|
|
|
| Features |
|
- Designed for a small robot.
- Compact and high power density.
|
|
