ATMEL AVR and Microchip PIC Controller Boards



ATMEL AVR controllers are great for robot brain. For its small size, inexpensive, simple architecture, and free C compiler and assembler, large flash programming space and on-board ISP (In-System Programming) port, it becomes the most popular controller used in the robotic world.

Our AVR controller boards are equiped with DIP package, on-board crystal and reset circuit, and on-board ISP (In-System programming) port. It reduces the development time and the complexity of the development tool. No other development tools needed to be purchased to program and debug the AVR chips

Featuring top performance PIC devices, the DEV series of three processors modules includes the DEV-PIC18F67J50, the DEV-PIC24FJ256GB206 and the DEV-P32MX795F512H covering the PIC18, PIC24 and PIC32 family of devices.

They have a consistent footprint making it easy to target processor families for new applications, or as an easy way to use a surface mounted processor. The modules all feature USB, Oscillator, Reset controller and have Microchip's USB Boot-loader already programmed in. The modules can be powered directly from the USB cable, or if using it as a stand alone system from a regulated 3.3v supply or a 4.5v-9v unregulated supply. The two rows are on a 0.8" pitch and easily plug into standard prototyping blocks.

DEV-PIC18F67J50 - 128k Flash, 3.9k bytes RAM, 12mips 8-bit CPU
DEV-PIC24FJ256GB206 - 256k Flash, 96k bytes RAM, 16mips 16-bit CPU
DEV-PIC32MX795F512H - 512k Flash, 128k bytes RAM, 80mips 32-bit CPU .

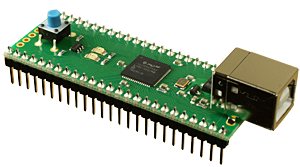

RS-PIC32MX795F512H-- US$59.00



PIC32MX795F512H processor module with 512k Flash, 128k bytes RAM and an 80mips 32-bit CPU.
The module has Microchip's USB Boot-loader already programmed in.

Click for Full Technical Documentation

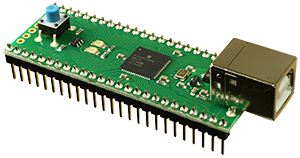

RS-PIC24FJ256GB206-- US$55.00

PIC24FJ256GB206 processor module with 256k Flash, 96k bytes RAM and a 16mips 16-bit CPU.
The module has Microchip's USB Boot-loader already programmed in.

Click for Full Technical Documentation

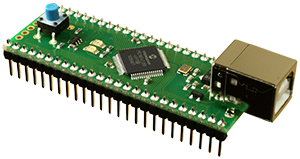

RS-PIC18F67J50-- US$36.00

PIC18F67J50 processor module with 128k Flash, 3.9k bytes RAM and a 12mips 8-bit CPU.
The module has Microchip's USB Boot-loader already programmed in.

Click for Full Technical Documentation

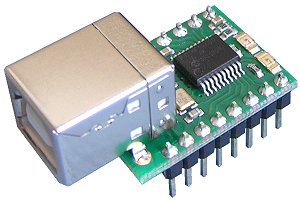

SENSOR-USB-GPIO - USB to GPIO converter-- US$29.00

he USB-GPIO12 is a general purpose user programmed control module built around the Microchip PIC18F14K50. It includes a USB interface with Microchip's HID Boot-Loader already programmed in.

Full USB-GPIO12 Documentation


Operates from USB power with 80mA to spare for your own circuits from a standard 100mA USB port.
12MIPs processor performance.
Example programs to get you quickly up and running.
Pin selectable reset to Bootloader or Appilication.
Free development tools from Microchip.

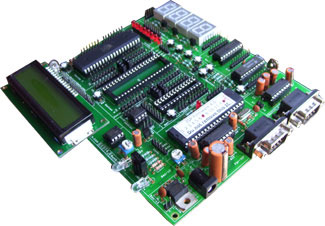

RS-EEDT -- US$109.00

Embedded Engineers Development Tool 5.0 (EEDT 5.0) is an advanced version of EEDT4.0. This board is suggested for the product development companies. EEDT5.0 is a multiple device support development board with On-board ISP Programmer and various interfacing sections. You can experiment with 89S52, ATmega8, ATmega16, ATmega32, ATTiny13, ATtiny2313, ATtiny26, ATmega8515, ATmega8535, ATmega128 and their pin compatible AVR controllers. You can interface these microcontrollers with LEDs, Switches, Relays, High current driver, seven segment displays, 16x2 LCD, ADC, RS232, EEPROM, Real Time Clock (RTC), RC5 IR data, Solid state DC motor driver, 4x4 keypad etc. These interfacing sections are available on the board. You need not to make any external arrangment for this. You can also experiment and develope Timers, Interrupts and Counter applications. With 7 different target section, all port pins of each microcontrollers are seperately open for connection. Product Details



RS-ECAVR -- US$59.00

This AVR Training Course is available globally. You can enroll to this course and study ATmega32 AVR microcontrollers at you home or office. Audio supported to the graphical tutorial helps you understand the concepts of Embedded C, Embedded Development and AVR Programming. The tutorial will teach you from basics to advanced level. A course completion certificate and listing of your final project on our web site are key advantages of this course. Product Details



RS-PCAM -- US$89.00

Practical Course For ATMEL Microcontrollers is developed with an intention to make "Every thing" available in one course. This Course is a combination of Experiment Board hardware, Tutorial with graphics, Audio and sample source code for interfacing. It starts with the basic of 89S52 microcontroller. Tutorial starts with easy to understand explanation of Timers, counters and RS232 experiment with 89S52. Later tutorial covers the Embedded C language and Embedded Development aspects. The audio helps you to understad the concepts easily. It will also teach you the interface techniques for 89S52 and AVR microcontrollers. Product details



RS-BinaryWatch -- US$12.00

Binary Watch is Do-it-yourself kit based on ATmega8. What is the time now?
Use this fancy AVR ATmega8 based DiY to impress your friends!!!
The Binary Watch in this snap shows time as 9hrs 42mts.
Can you read it!!! Product Details



RS-MR162-MODULE --- US$42.95

RS-MR162 is a small 40-pin DIP type CPU board, which has an ISP(In-System Programming) port, reset button, 8MHz X-tal, and 35 I/O port pins. It uses an Atmega162 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details.



RS-MR162-PACKAGE --- US$52.95

RS-MR162 is a small 40-pin DIP type CPU board, which has an ISP(In-System Programming) port, reset button, 8MHz X-tal, and 35 I/O port pins. It uses an Atmega162 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details. The package inlcudes the ISP programming cable and you save money...



RS-MR16-MODULE --- US$35.95

RS-MR16 is a 40-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 8MHz X-tal, and 32 I/O port pins. It uses an Atmega16L (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details .



RS-MR16-PACKAGE --- US$45.95

RS-MR16 is a 40-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 8MHz X-tal, and 32 I/O port pins.It uses an Atmega16L (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details . The package inlcudes the ISP programming cable and you save money...



RS-MR2313-MODULE --- US$28.95

RS-MR2313 is a 26-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 10 MHz X-tal, and 15 I/O port pins. It uses an AT90S2313 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details .



RS-MR2313-PACKAGE --- US$38.95

RS-MR2313 is a 26-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 10 MHz X-tal, and 15 I/O port pins.It uses an AT90S2313 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details . The package inlcudes the ISP programming cable and you save money...



RS-MR8-MODULE --- US$38.95

RS-MR8 is a 26-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 16 MHz X-tal, 20 I/O port and two ADC pins. It uses an ATmega8 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details.



RS-MR8-PACKAGE --- US$50.95

RS-MR8 is a 26-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 16 MHz X-tal, 20 I/O port and two ADC pins. It uses an ATmega8 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details. The package inlcudes the ISP programming cable and you save money...



RS-MR8515--MODULE --- US$32.95

RS-MR8515 is a 40-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 8 MHz X-tal, and 32 I/O port pins. It uses an AT90S8515 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details.



RS-MR8515--PACKAGE --- US$44.95

RS-MR8515 is a 40-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 8 MHz X-tal, and 32 I/O port pins. It uses an AT90S8515 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details. The package inlcudes the ISP programming cable and you save money...



RS-MR8535--MODULE --- US$29.95

RS-MR8535 is a 40-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 8 MHz X-tal, and 32 I/O port pins. The MR-8535 uses an ATmega8535L (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details.



RS-MR8535--PACKAGE --- US$41.95

RS-MR8535 is a 40-pin DIP type small CPU board, which has an ISP(In-System Programming) port, reset button, 8 MHz X-tal, and 32 I/O port pins. The MR-8535 uses an ATmega8535L (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details. The package inlcudes the ISP programming cable and you save money...



RS-MR4433--MODULE --- US$29.95

RS-MR4433 is a 26-pin DIP type small CPU board, which has an ISP (In-System Programming) port, reset button, 8 MHz X-tal, and 20 I/O port pins. It uses an AT90S4433 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product Details.



RS-MR4433--PACKAGE --- US$41.95

RS-MR4433 is a 26-pin DIP type small CPU board, which has an ISP (In-System Programming) port, reset button, 8 MHz X-tal, and 20 I/O port pins. It uses an AT90S4433 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product details.The package inlcudes the ISP programming cable and you save money...



RS-ATmega128--MODULE --- US$55.95

The ATmega128 CPU BOARD is a simple adapting board which changes a TQFP(Thin Quad Flat Package) to a DIP(Dual Inline Package, 0.1 inch pitch) type.The ATmega128 CPU is an ATMEL 8 bit microcontroller. It is a member of the powerful ATMEL AVR CPU series. Technical Specifications and Product details.



RS-SERVO8-MODULE -- US$45.95

RS-Servo8 is a small pre-assembled R/C(Radio Control) servo controller, which has 16 R/C servo connectable I/O pins. It can control up to 8 R/C servos at the same time. It uses an ATmega8 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product details.



RS-SERVO8-PACKAGE -- US$57.95

RS-Servo8 is a small pre-assembled R/C(Radio Control) servo controller, which has 16 R/C servo connectable I/O pins. It can control up to 8 R/C servos at the same time. It uses an ATmega8 (Atmel AVR series) CPU chip as a microcontroller. Technical Specifications and Product details. The package inlcudes the ISP programming cable and you save money...



RS-AVR128AP1 -- US$249.00

Specifications:
Size:
CPU Board:
Display:
Sensor:
Key:
Port:
Buzzer:
Power:
Option:
Other:
85 x 146 mm
ATmega128 CPU Board
16 x 2 line LCD, 8-Segment Display, LED Network
Infrared LED and Sensor
Reset key, User key x 6
Stepping motor port and module port
Piezo Buzzer (BTG-47) frequency controlled
DC 8-12 V, DC 15 V
Stepping motor and RF module (BiM 418 or BiM 433)
MAX 232
Features:
- It includes ATmega128 CPU Board and downloader cable
- On board stepping motor driver (SLA7024)
- User manual and a program CD included





RS-AVR-ISP-DOWNLOADER -- US$14.95

AVR ISP Downloader is a tool to burn AVR CPUs using a PC printer port. AVR CPUs have an In-System Programming(ISP) function. Thus, the user can download a program to the CPU with this simple CPU Writer. AVR ISP Downloader consists of an adaptor and a ribbon cable. Technical Specifications and Product details.





Resources

AVR based robot examples are coming soon...

Need helps? Just send us an email to: info@robotstorehk.com

We will response your email within 24-hour, 7-day a week.
