Makeblock is a fast growing robot constuction platform based on aluminum extrusion materials.We provide an integrated platform including many mechanical parts and electronic modules, all the mechanical parts are convenient to connect to each other. the electronic modules are easy to use, also it's conveinent to attach on the mechanical parts.
We will concentrate on developping new parts and modules, to make this platform cover more and more functions. We are willing to cooperate with distributors around the world, to bring you customer this innovative construction platform, to help turn their ideas into success.
Ultimate 2.0 is a flagship robot kit based on Makeblock platform with rich features and strong compatibility. Whether you are an enthusiast of Raspberry Pi or Arduino, a mechanical or electronics engineer, a teacher, or a student, it helps you learn the knowledge of mechanical structures, electronic modules and programming skill with ease. Please visit Learn for more resource.
.jpg)
Features
• Ten building forms will meet all your need for different application scenes;
• Great for learning robotics, electronics, graphical programming, Arduino programming and Python programming;
• Anodized 6061 aluminum mechanical parts with threaded-slot design brings an easy way of building the robot;
• Three powerful encoder motors enable you to feel every step of the robot;
• Wirelessly control your robot with smart devices through Bluetooth connection.

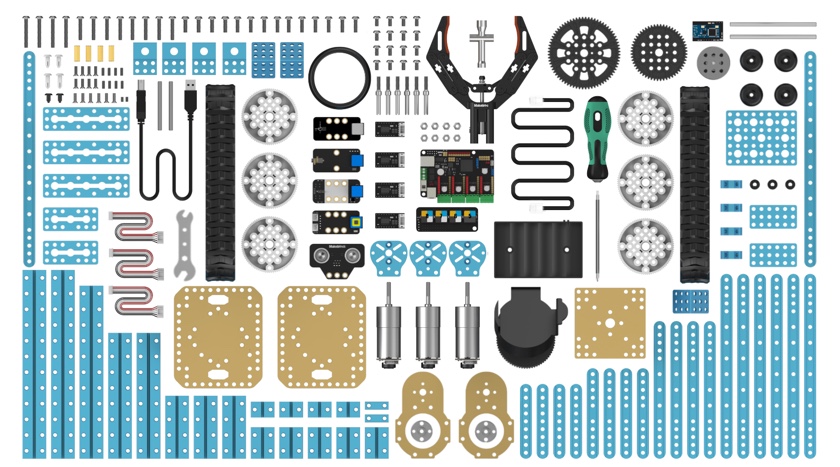

Tech Specs of Ultimate 2.0 |
| Mechanical Parts |
Aluminum Extrusion Parts
Plastic Timing Pulleys 90T
Plastic Gears
Tracks and Wheels
Cables
Others Hardware and Accessories |
| Electronic Modules |
1 x MegaPi
1 x MegaPi Shield for RJ25
1 x Bluetooth Module
4 x Motor Driver
3 x Encoder Motor
1 x Ultrasonic Sensor
1 x Line Follower Sensor
1 x 3-Axis Accelerometer and Gyro Sensor
1 x RJ25 Adapter
1 x Shutter
1 x Makeblock Gripper |
| Building Forms |
Ten Building forms?With paper assembling
instruction for three main forms) |
| Programming |
Graphical Programming
Arduino Programming
Python Programming
Node JS Programming |
Tech Specs of MegaPi |
| Microcontroller |
ATMEGA2560-16AU |
| Input Voltage |
DC 6V-12V |
| Operating Voltage |
DC 5V |
| I/O Pins |
43 |
| Serial Ports |
3 |
| I2C Interface |
1 |
| SPI Interface |
1 |
| Analog Input Pins |
15 |
| DC Current per I/O Pin |
20mA |
| Flash Memory |
256KB |
| SRAM |
8KB |
| EEPROM |
4KB |
| Clock Speed |
16 MHz |
| Dimension |
85*63mm |
| The various colors on MegaPi represents specialized functions: |
| Red Pin |
Power output/motor output |
| Yellow Pin |
I/O pin |
| Blue Pin |
Wireless communication interface |
| Black Pin |
Power GND |
| Green Interface |
Power output/motor output |

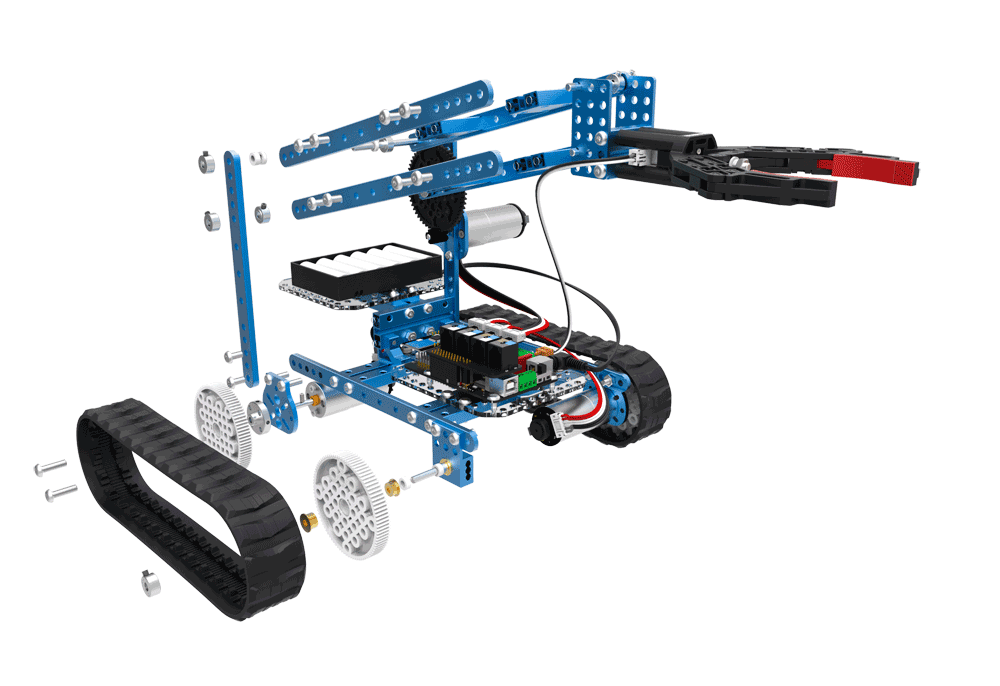

Robotic Arm Tank
This Robot Arm Tank consists of a highly-adaptable track chassis and a flexible robotic arm. This robot is designed to help you grip, lift, and deliver objects in various terrains.
Robotic Bartender
Robotic Bartender is made up of a mobile chassis, a variable angle support structure and a self-adaptive bracket. It can independently pour wine into a glass (or do other similar action) and deliver the glass to you.

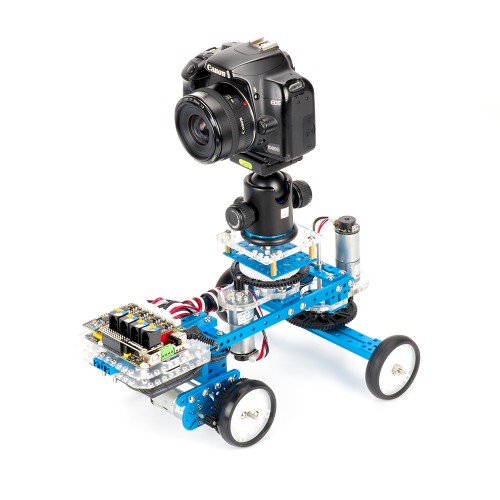

Camera Dolly
Camera Dolly consists of a mobile chassis and a 360-degree swivel base. Add a smart phone or a camera onto this robot and start filming from a low angle. You can also preset a path for the robot to follow in order to capture the moments of your life (motion noise may affect the sound recording).

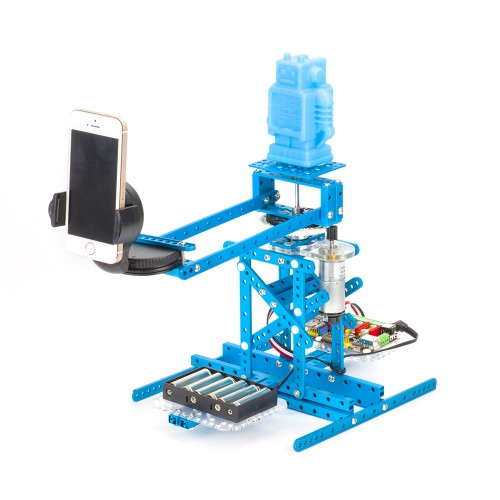

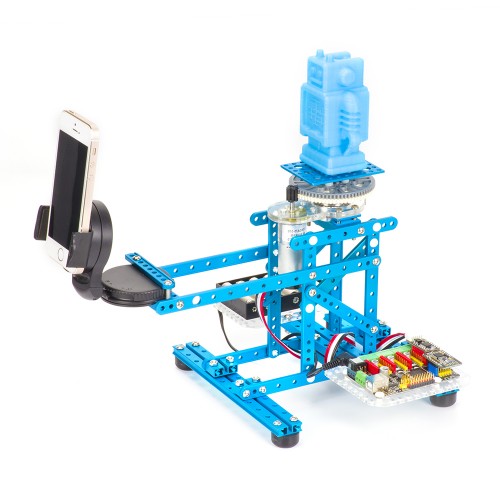

3D Capture is a simple yet powerful 360-degree rotating platform, consisting of a cell phone holder and a rotating structure. Add a cell phone to realize 360-degree panoramic filming or let the robot film while moving around small objects. When connected with an app, it can simulate 3D scanning beautifully.

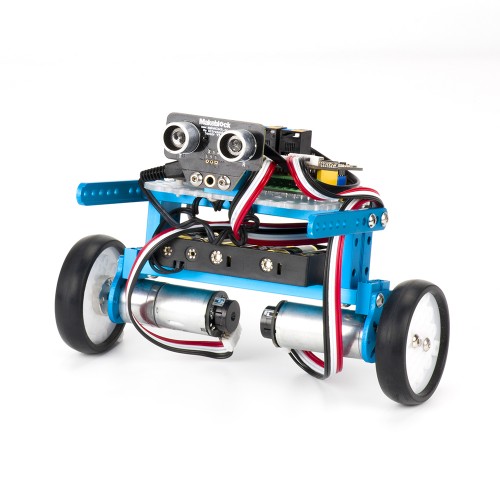

This self-balancing robot is another building form of Ultimate 2.0 Robot Kit. It is driven by two encoder motors at its two wheels. It can move forward and backward while keeping balance.
Powerful Mainboard - MegaPi
MegaPi is small but powerful mainboard based on Arduino MEGA 2560. It has six function areas, which can be connected with modules to realize wireless communication or drive various motors. MegaPi is capable of driving 10 servos or 8 DC motors simultaneously. It can be used to build various robots, such as 3D printer and other robotic projects.

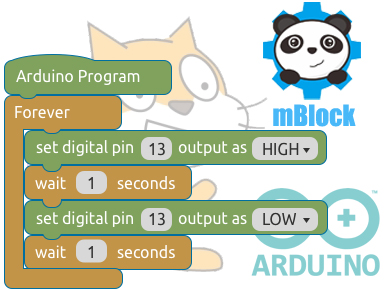

Graphical Programming from PC
Ultimate 2.0 is fully compatible with mBlock which is a graphical programming environment based on Scratch 2.0 Open Source Code. It makes programming projects and interactive applications easier through simply dragging and dropping function blocks.

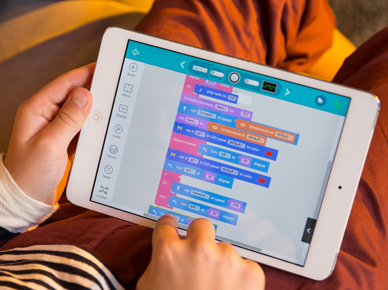

iPad/Tablet Programming
In addition to PC programming, Ultimate 2.0 also supports being programmed from your iPad and tablets with an easy-to-use app – Makeblock HD. Explore with Ultimate 2.0 using the existing projects, or develop your own.
