Makeblock Kits and Accessories

Makeblock is a fast growing robot constuction platform based on aluminum extrusion materials.We provide an integrated platform including many mechanical parts and electronic modules, all the mechanical parts are convenient to connect to each other. the electronic modules are easy to use, also it's conveinent to attach on the mechanical parts.

We will concentrate on developping new parts and modules, to make this platform cover more and more functions. We are willing to cooperate with distributors around the world, to bring you customer this innovative construction platform, to help turn their ideas into success.





MAKEBLOCK - XY-Plotter Kit (without Laser Engraver) -- US$289.00

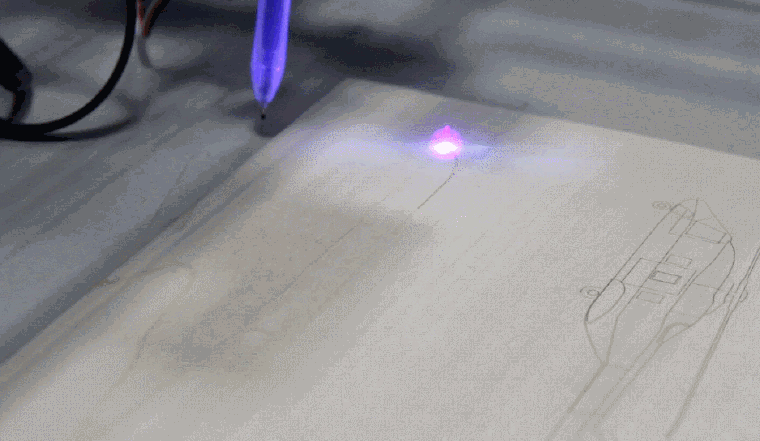

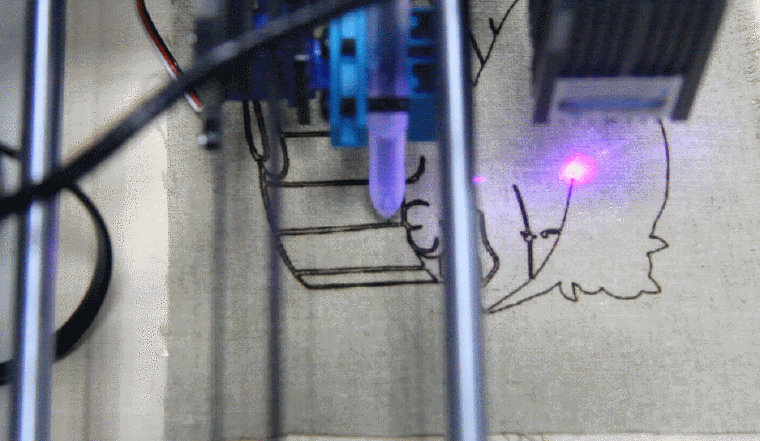

MAKEBLOCK-XY-Plotter Kit (with Laser Engraver) -- US$389.00

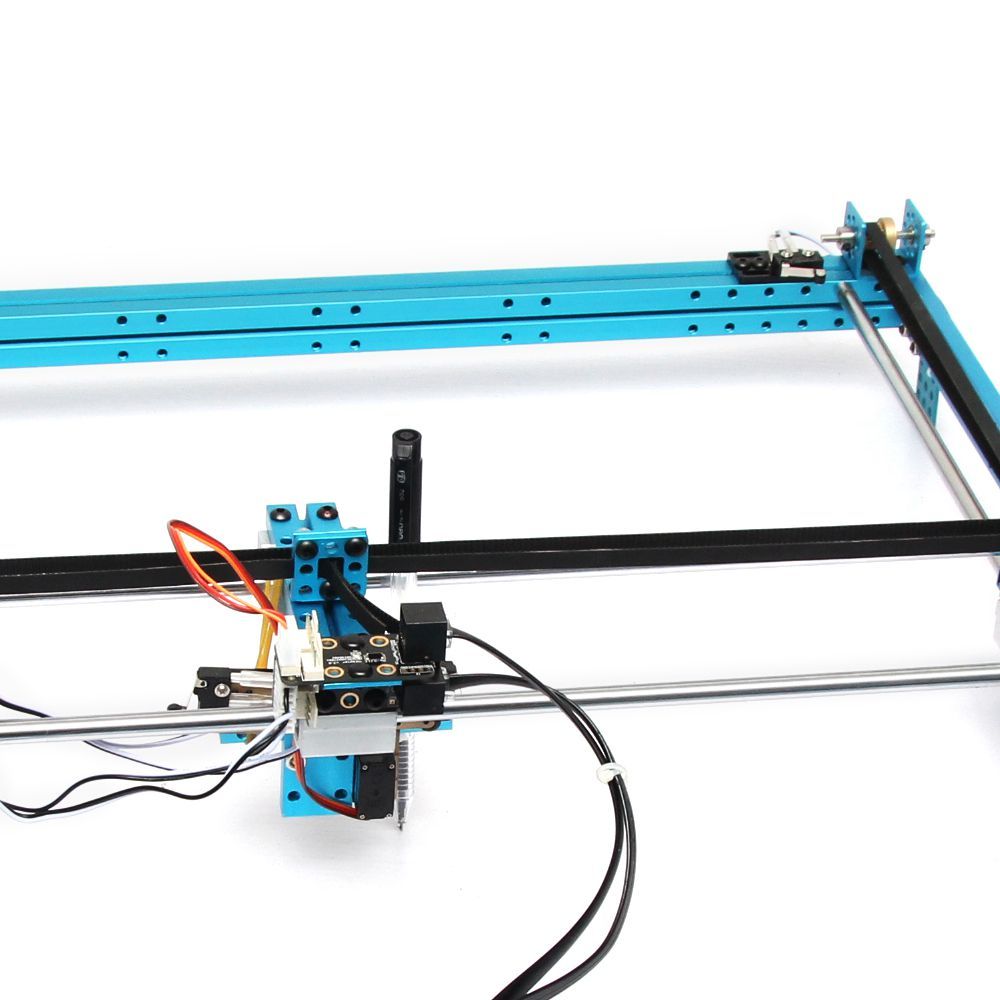

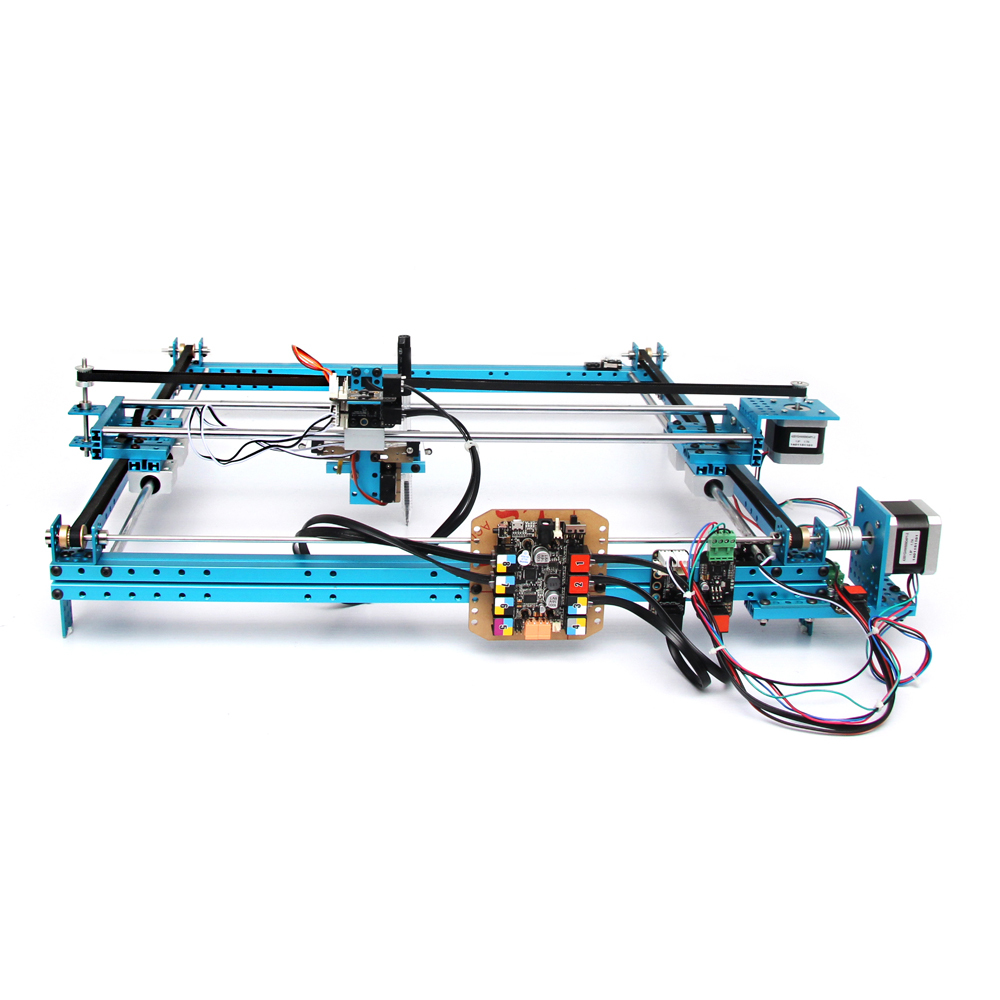

Stronger structure, super easy stepper motor driver and laser-head compatible -- Makeblock XY-Plotter 2.0 is a fully updated version of XY-plotter. With the Processing and GRemote, the XY-Plotter 2.0 is a drawing robot basiclly, you can draw amazing pictures with Gcode.

Since we reinforce the structure, the XY-plotter 2.0 is stronger enough to be conversed to MiniCNC, 3D printer, driller, laser cutting machine, etc. And the movement of the terminal is stable and precise since the improved dual-way transmission mechanism.

Please visit the link to download the software and assembly instruction.

https://github.com/Makeblock-official/XY-Plotter-2.0











Features:

• Stronger aluminum extrusion parts anodizing surface
• Dual-way transmission mechanism
• Improved pen rising mechanism
• Super easy-use stepper motor driver
• Updated control panel
• Easy-Controlled by Processing and GRemote



Part List:

1 x Beam 0824-16	10 x Shaft Collar 4mm	1 x 6P6C RJ25 cable-35cm
4 x Beam 0824-48	1 x Flexible coupling 4x4mm	2 x 6P6C RJ25 cable-50cm
1 x Beam 0824-80	4 x Linear Motion Shaft D8X496mm	1 x Wall Adapter Power Supply - 12VDC
4 x Beam 0824-96	6 x Linear Motion Slide Unit 8mm	1 x USB A-Male to B-Male Cable
2 x Beam 0824-112	10 x Flange Bearing 4x8x3mm	1 x Base Bracket
2 x Beam 0824-496	1 x HEX Screwdriver 2.5mm	4 x  Me Micro Switch B
1 x Beam 0808-80	1 x Cross Screwdriver 3mm	1 x 9g  micro servo bracket
2 x Beam2424-504	2 x HEX Allen Key 1.5mm	1 x Linear Motion Shaft D4x512mm
2 x Bracket 3x3	1 x Wrench 7mm	1 x Linear Motion Shaft D4x80mm
5 x Plate 3x6	50 x Nut M4	3 x Nut M2
5 x Bracket U1	10 x Countersunk Screw M3x8	3 x Cross recessed pan head screw M2×10
3 x  Belt Connector	26 x Headless Set Screw M3x5	30 x Socket Cap Screw M4×14
2 x 42BYG Stepper Motor Bracket	16 x Plastic Rivet R4060	28 x Socket Cap Screw M4×16
1 x K-Power 9g Micro Servo	6 x Plastic Rivet R4100	12 x Socket Cap Screw M4×22
2 x 42BYG Stepper Motor	20 x Plastic Ring 4x7x2mm	18 x Socket Cap Screw M4×30
6 x Timing Pulley18T	1 x Me-Baseboard	36 x Socket Cap Screw M4×8
3 x Open-end Timing Belt (1.3m)	2 x Me Stepper motordriver V1.0	6 x Cuttable Linkage 3
2 x D Shaft 4x56mm	3 x RJ25 Adapter	30 x Nylon cable ties 2*100
1 x Threaded Shaft 4x39mm	2 x 6P6C RJ25 cable-20cm	5 x Rubber band
