Makeblock Kits and Accessories



Makeblock is a fast growing robot constuction platform based on aluminum extrusion materials.We provide an integrated platform including many mechanical parts and electronic modules, all the mechanical parts are convenient to connect to each other. the electronic modules are easy to use, also it's conveinent to attach on the mechanical parts.

We will concentrate on developping new parts and modules, to make this platform cover more and more functions. We are willing to cooperate with distributors around the world, to bring you customer this innovative construction platform, to help turn their ideas into success.

We do carry ALL Makeblock parts, but we only list some of popular ones.

Please contact us if you cannot find them here. We guarantee our price is the lowest among the distributors.

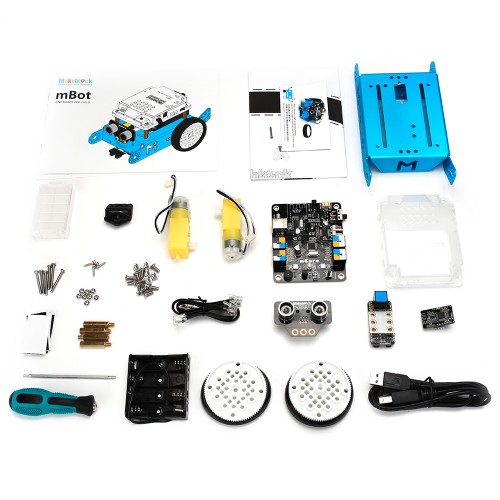

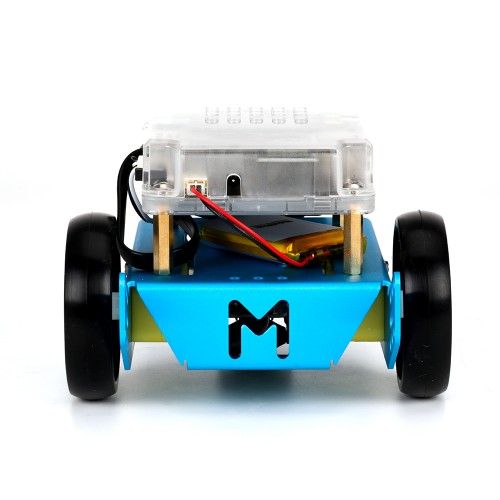

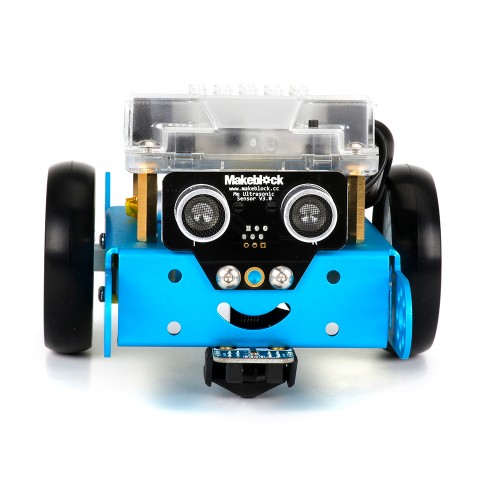

MAKEBLOCK - mBot V1.1 (Bluetooth) -- US$90.00

MAKEBLOCK - mBot V1.1 (2.4G) -- US$93.00




Bluetooth or 2.4G?

If you're trying to figure out the difference between Bluetooth version and 2.4G version, or your smart device cannot connect to mBot, please check the version of your mBot first. Here is comparison chart:



Bluetooth Version

2.4G Version

Suitable Individual users of family Classroom
Host computer Support Bluetooth No
Paring Bluetooth Paring No paring,the same technology
with wireless mouse
Driver needed Yes No
App Yes No
Connection Wireless connection with smartphones, tablets,
and PCs with Bluetooth capability
Wireless connection with PC via 2.4G adapter
Apple® device

1) iOS 7 or above

2) Bluetooth®4.0 or above

*exclude iPad®1, iPad®2, iPhone®4 or below

Not Support
Android™ device

1) Android™2.3 or above

2) Bluetooth®2.0 or above

Not Support



Specifications

Software and programming mBlock(graphical) Mac, Windows,  iPad mBlocky
Arduino IDE
Inputs Light sensor, button, infrared receiver, ultrasonic ,sensor, line follower
Outputs Buzzer, RGB LED, Infrared emitting, two motor ,ports
Microcontroller Based on Arduino Uno
Power 3.7VDC lithium battery(charger on board) or four 1.5V AA batteries (not included)
Wireless Communication Bluetooth(Bluetooth Version)
2.4GHz wireless serial(2.4G Version)
Dimensions 17 x 13 x 9 cm assembled
Weight 1034g assembled

mBot Ranger VS. mBot

If you're trying to figure out the difference between mBot Ranger and mBot, check this comparison chart.

mBot Ranger mBot
Form(s) 3 1
Main Control Chip Arduino Mega 2560 Arduino Uno
Extension Ports 10 motor/sensor ports 4 sensor ports
On-Board Sensor 6 x sensors, include:
Light sensor
Ultrasonic sensor
Line follower
Gyroscope
Temp sensor
Sound sensor
3 x sensors, include:
Light sensor
Ultrasonic sensor
Line follower
LED Lamplets 12 2
PC Programming mBlock mBlock
iPad/Tablets MakeblockHD mBlockly
Smartphone App Under development mBot app
Arduino
Communication Bluetooth/2.4G Bluetooth/2.4G
Online Courses



mBot descriptions from MAKEBLOCK.
